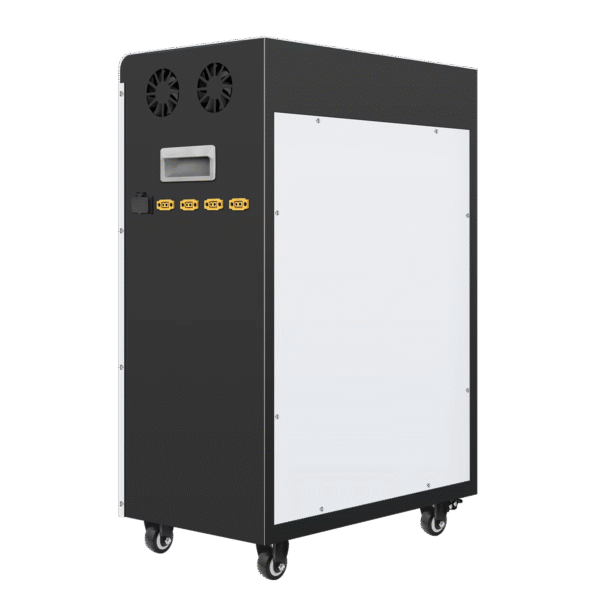

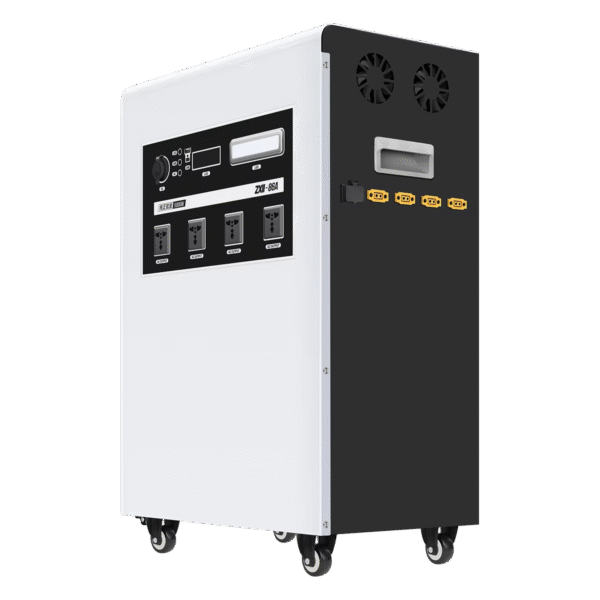

JTD-XM86A-4000W Portable Solar Power Station
🌟 Key Features
- 🔌 Rated Power: 4000W continuous output, 8000W peak
- 🔋 Battery & Voltage: 25.6V, 4.5kWh capacity
- ⚡ Pure Sine Wave Output: AC 220V, THD ≤ 5%
- 🌍 Frequency: 50Hz/60Hz ±0.5
- 🖥️ LCD Display: Shows output voltage, battery level, AC output, waveform, battery voltage, real-time temperature, fan status
- 🔌 AC & USB Outputs: 4 AC universal sockets, 2 USB (Type-C fast charge supported), 1 cigarette lighter (12V-10A-120W)
- 💡 LED Light & Switches: 1 LED lamp, 3 control switches (LED, USB, AC)
📐 Technical Specifications
| Model | XM86A-4000W |
| Standard Voltage | 25.6V |
| Capacity | 4.5kWh |
| Dimensions | 493 × 295 × 728 mm (including wheels) |
| Continuous Output Power | 4000W (Resistive Load) |
| Peak Power | 8000W |
| AC Voltage | 220Vac |
| Output Waveform | Pure Sine Wave (THD ≤5%) |
| Efficiency | 87% (tested at inverter PCB input DC voltage, calibrated DC current sampling device) |
| AC Universal Sockets | 4 |
| USB Ports | 2 (Type-C fast charge supported) |
| Cigarette Lighter Output | 1 (12V-10A-120W) |
| LED Lamp | 1 |
| Control Switches | 3 (LED, USB, AC) |
📦 Applications
- ✅ Outdoor Activities & Camping
- ✅ Emergency Power Backup
- ✅ All AC Loads Support
- ✅ Compatible with Solar, Car, Gas Generator, Adapter Inputs
