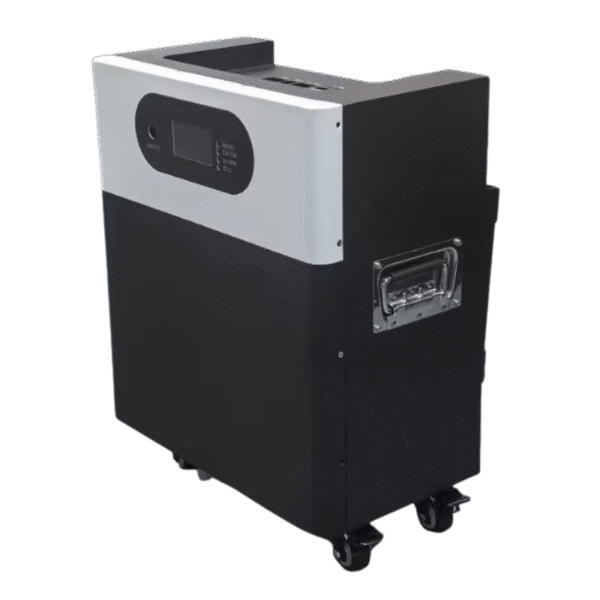

JTD-8kWh-BG Wall-Mounted Mobile Energy Storage Battery | 8kWh / 314Ah
🌟 Key Features
- 🔋 High Performance Storage: 8kWh / 314Ah capacity with 200A continuous discharge current
- 🛡️ Safe & Long Lifespan: LiFePO₄ cells ensure high stability and extended cycle life
- 🔗 Smart Communication: RS485 / RS232 / CAN interfaces
- 🌡️ Wide Temperature Range: Charging 0℃~+50℃ / Discharging -20℃~+50℃
- 🏠 Mobile & Versatile: Wall-mounted design with wheels, suitable for home energy storage & solar PV systems
📐 Technical Specifications
| Model | JTD-8kWh-BG |
| Nominal Capacity | 314Ah / 8kWh |
| Nominal Voltage | 26.6V |
| Discharge Cut-off Voltage | 22.4V |
| Charge Cut-off Voltage | 29.2V |
| Continuous Discharge Current | 200A |
| Communication Interfaces | RS485 / RS232 / CAN |
| Charge & Discharge Method | DC / CP / VP |
| Charging Current | 0.2C Standard, Max 0.5C |
| Charging Temperature | 0℃ ~ +50℃ |
| Discharging Temperature | -20℃ ~ +50℃ |
| Dimensions | 465 × 420 × 240 mm |
| Cell Type | LiFePO₄ (Lithium Iron Phosphate) |
📦 Applications
- ✅ Wall-mounted Mobile Home Energy Storage
- ✅ Solar PV Energy Storage
- ✅ Hybrid On/Off Grid Applications
