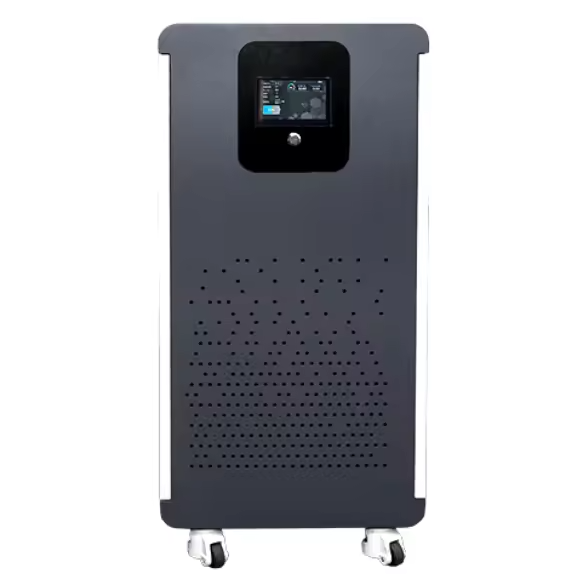

JTD-30kWh-L Home Energy Storage Battery | 30kWh / 560Ah

🔋 High Performance Storage: 30kWh / 560Ah capacity with 200A continuous discharge current
🛡️ Safe & Long Lifespan: LiFePO₄ cells ensure high stability and extended cycle life
🔗 Smart Communication: RS485 / RS232 / CAN interfaces
🌡️ Wide Temperature Range: Charging 0℃~+50℃ / Discharging -20℃~+50℃
🏠 Mobile & Versatile: Wall-mounted design with wheels, suitable for home energy storage & solar PV systems

Model	JTD-30kWh-L
Nominal Capacity	560Ah / 30kWh
Nominal Voltage	51.2V
Discharge Cut-off Voltage	44.8V
Charge Cut-off Voltage	58.4V
Continuous Discharge Current	200A

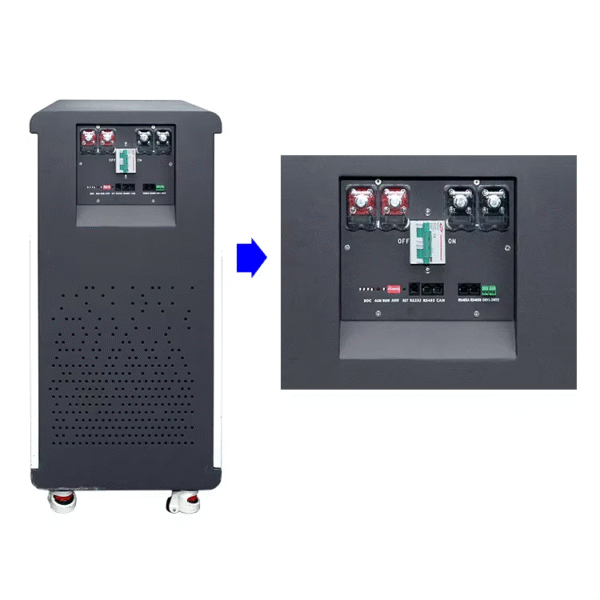

Communication Interfaces	RS485 / RS232 / CAN
Charge & Discharge Method	DC / CP / VP
Charging Current	0.2C
Charging Temperature	0℃ ~ +50℃
Discharging Temperature	-20℃ ~ +50℃
Dimensions	740 × 450 × 680 mm
Cell Type	LiFePO₄ (Lithium Iron Phosphate)
