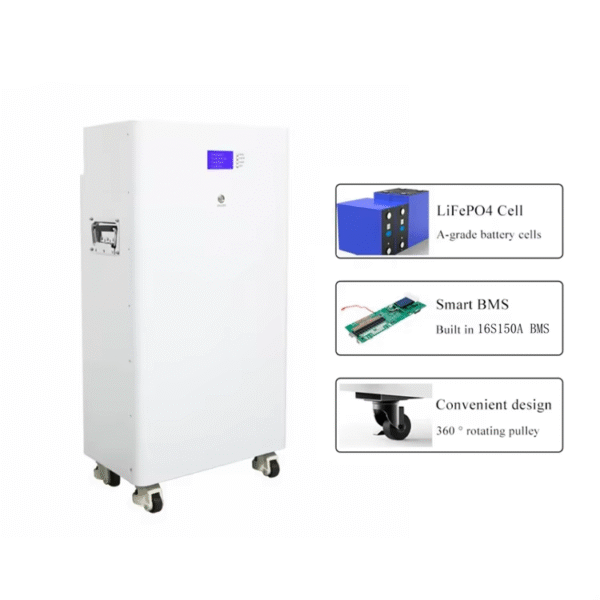

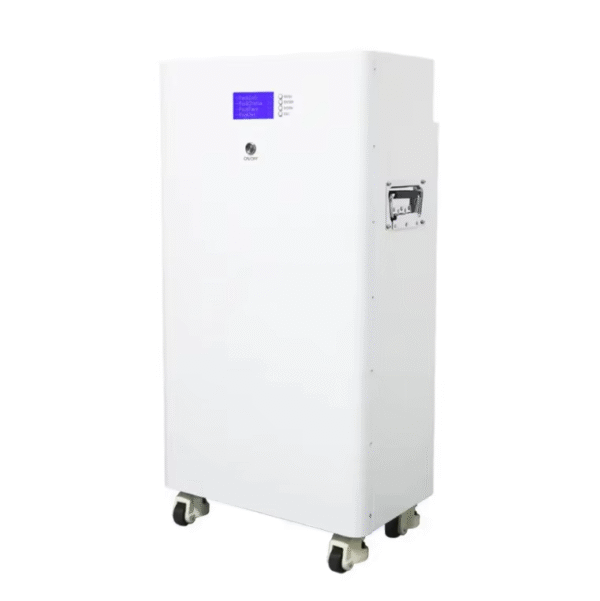

JTD-15kWh-L-W Floor-Mounted Battery Home Energy Storage Battery | 15kWh / 280Ah
🌟 Key Features
- 🔋 High Performance Storage: 15kWh / 280Ah capacity with 200A continuous discharge current

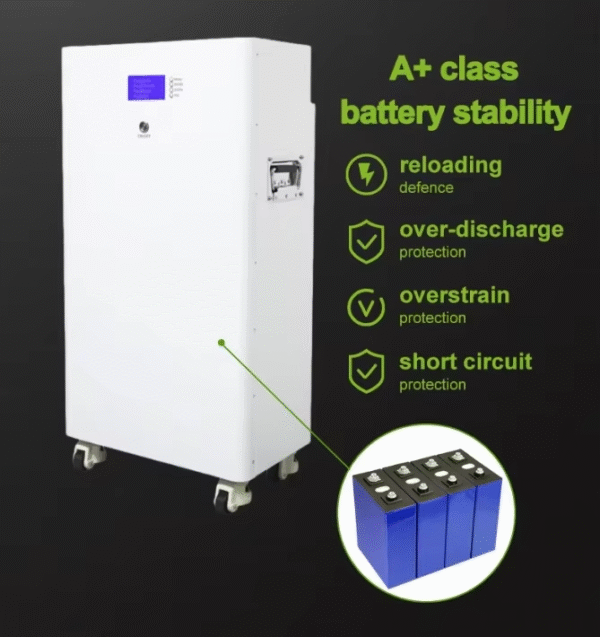

- 🛡️ Safe & Long Lifespan: LiFePO₄ cells ensure high stability and extended cycle life
- 🔗 Smart Communication: RS485 / RS232 / CAN interfaces
- 🌡️ Wide Temperature Range: Charging 0℃~+50℃ / Discharging -20℃~+50℃
- 🏠 Mobile & Versatile: Floor-mounted design with wheels, suitable for home energy storage & solar PV systems
📐 Technical Specifications
| Model | JTD-15kWh-L-W |
| Nominal Capacity | 280Ah / 15kWh |
| Nominal Voltage | 51.2V |
| Discharge Cut-off Voltage | 44.8V |
| Charge Cut-off Voltage | 58.4V |
| Continuous Discharge Current | 200A |
| Communication Interfaces | RS485 / RS232 / CAN |
| Charge & Discharge Method | DC / CP / VP |
| Charging Current | 0.2C Standard, Max 0.5C |
| Charging Temperature | 0℃ ~ +50℃ |
| Discharging Temperature | -20℃ ~ +50℃ |
| Dimensions | 440 × 270 × 780 mm |
| Cell Type | LiFePO₄ (Lithium Iron Phosphate) |
📦 Applications
- ✅ Mobile Wall-Mounted Home Energy Storage Systems

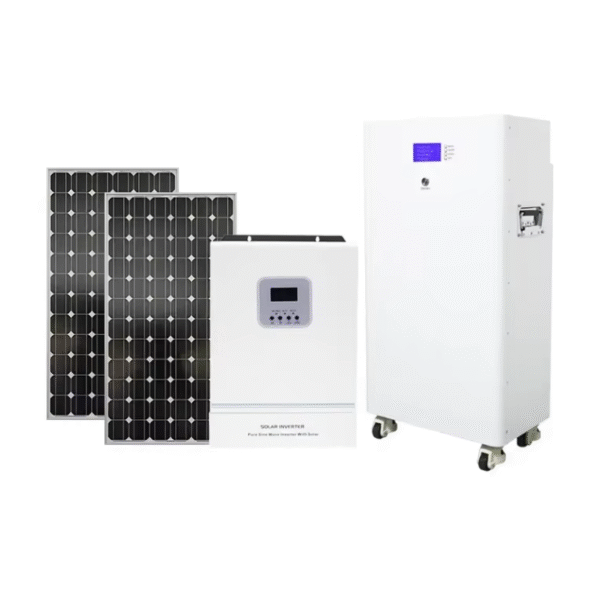

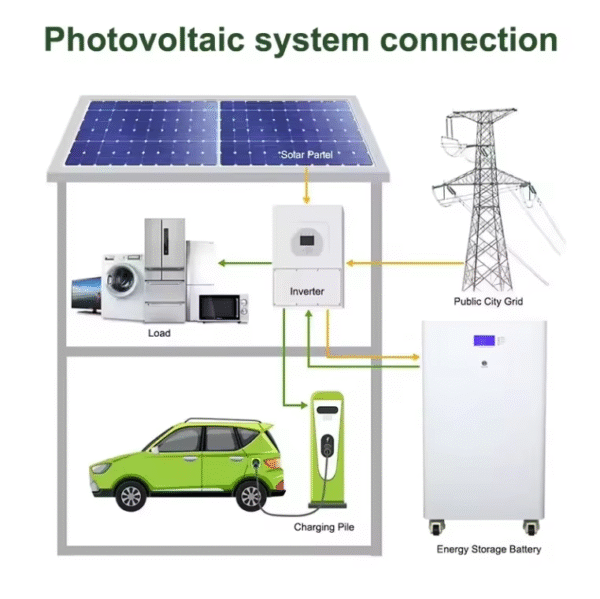

- ✅ Solar PV Energy Storage
- ✅ Hybrid On/Off Grid Applications
